Automotive Body-in-White Welding Line
The automotive body-in-white welding line is the main welding line in the body shop, responsible for the final framing and welding of major sub-assemblies (e.g., underbody, side frames, roof, etc.) received from sub-assembly lines. It integrates all completed components to form the complete BIW structure. Controlled by PLC system, the BIW welding line operates with full automation, achieving a positioning accuracy of ±0.2mm.
BIW welding line primary components include
- Robots
- Electrode Dresser
- Water & Gas Unit (RIP & HIP)
- In-line Conveyor System
- Positioning Fixtures
- Handling Gripper
- Tool Changer Pallet
- Servo Resistance Spot Welding Gun
- Arc Welding Gun
- Automatic Stud Welding Gun
- SPR (Self-Piercing Riveting) Unit
- FDS (Flow Drilled Screwing) Unit
- Automatic Sealing Equipment
- Automatic Part Loading Equipment (APC)
- Line-side Precision Positioning Load/Unload Cart
- Safety Fencing
Mainstream Technical Solutions and Characteristics
- Open-Gate framing
High flexibility with modular fixtures, suited to mixed-model production on one line. - Skid conveying
Stable and precise in positioning, matched to high takt. - Full robotic automation
Less manual work, strong consistency, and 24-hour continuous production. - Digital twin and error-proofing
VIN binding, parameter monitoring, and poka-yoke alarms secure weld quality.

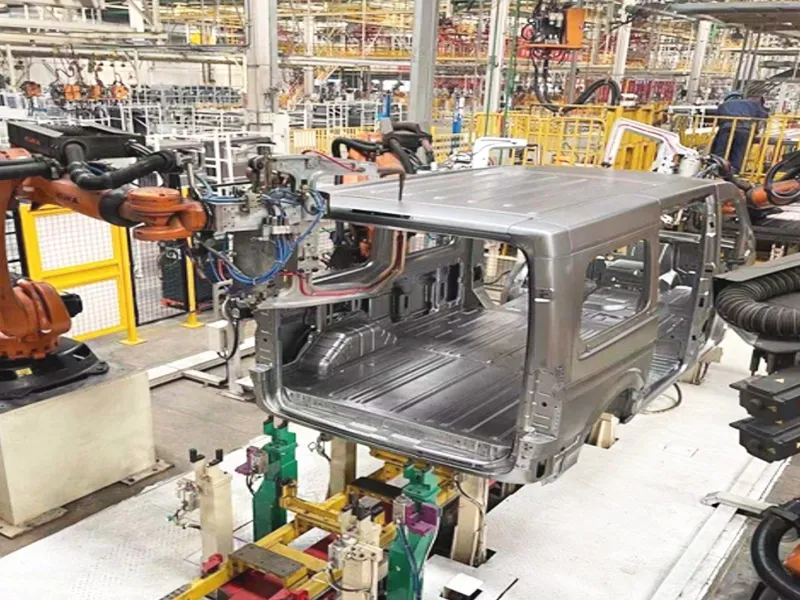

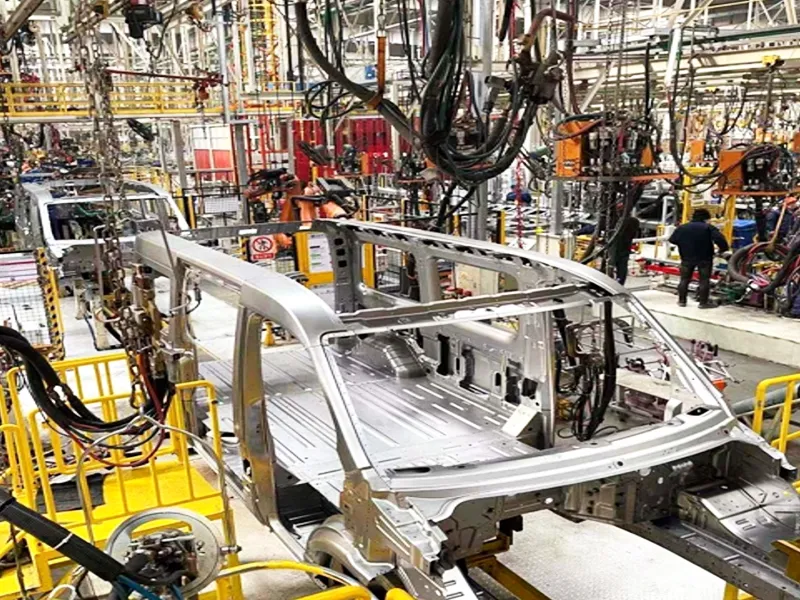

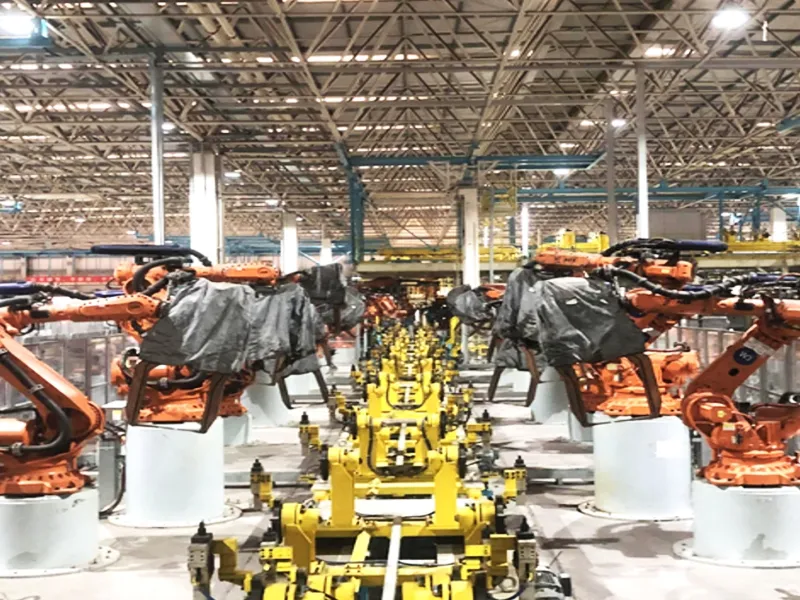

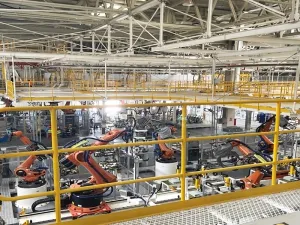

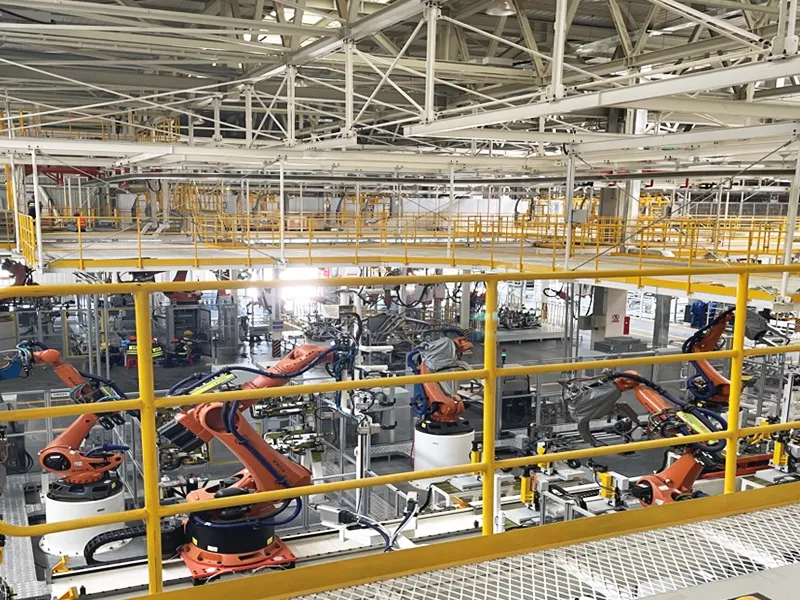

Automotive Body-in-White Welding Line Display
Changhong Intelligence's core business covers automated automotive painting equipment, intelligent welding systems, conveying systems, and general assembly lines. In the body shop area, we design and manufacture robotic welding lines, main body welding lines, and sub-assembly welding lines. In the paint shop area, we provide complete project planning and construction, including PT & ED equipment, spray booths, ovens, and conveying systems. In the general assembly area, we deliver automated assembly lines that build complete vehicles according to defined assembly specifications and sequences. Our technical services span the entire project lifecycle - from process planning, equipment design, and manufacturing to on-site installation, automation commissioning, and long-term after-sales support.
